Section 8 - Workshop Tools

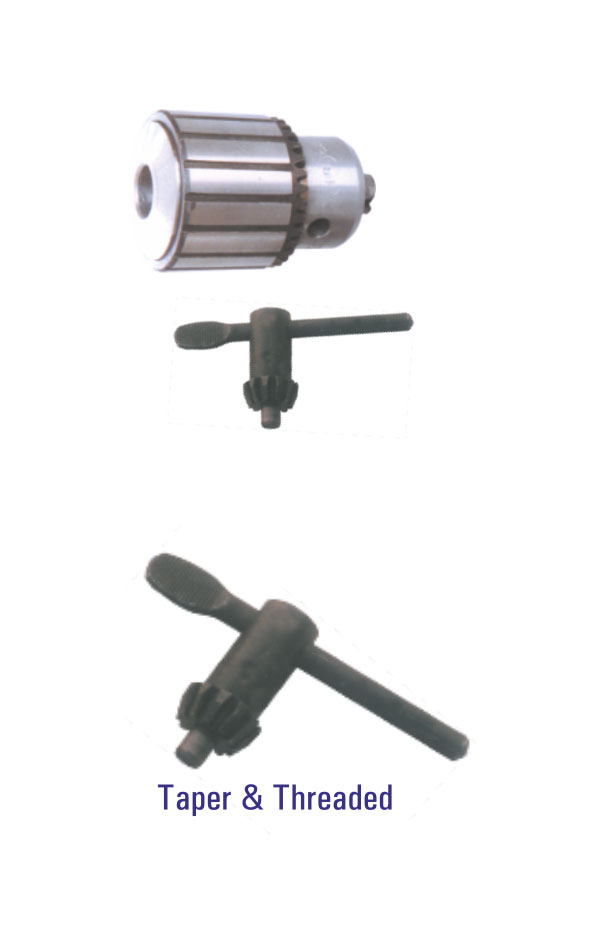

Drill Chuck
With Key Taper
Prod. No. 14640 14652 14661
Size In MM. 1.5-13 3-16 5-20
Taper In Inch. 6-JT 3-JT 3.JT
Size In Inch. 1/2 5/8 3/4
With Key Threaded
Prod. No. 14641 14642 14653 14654 14662 14663
Size In MM. 1.5-13 1.5-13 3-16 3-16 5-20 5-20
Thread Per Inch. 5/8x16 1/2x20 5/8x16 1/2x20 3/4x16 5/8x16
Size In Inch. 1/2 1/2 5/8 5/8 3/4 3/4

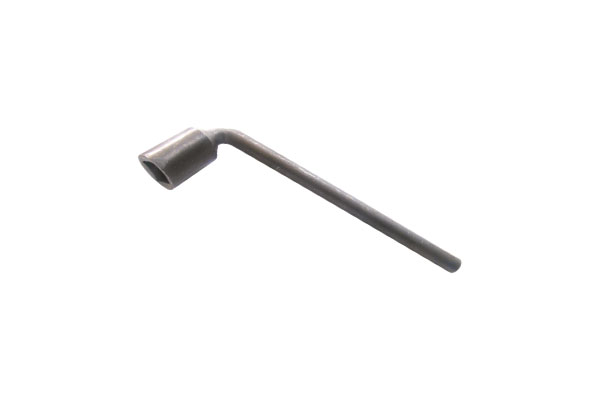

Spare Key For Drill Chuck
Prod. No. 14613 14614
Size In Inch. 1/2 5/8
Tool Post Spanners L-Type
Prod. No. 25812 25813 25822 25823
Size In Inch. 3/8 1/2 5/8 3/4

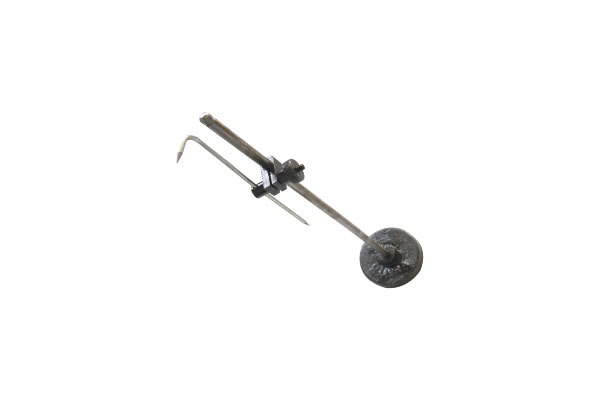

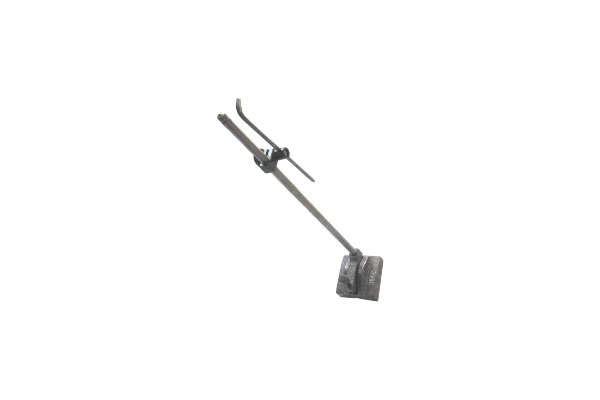

SUI Block (Surface Gauge)

Fix Base

Prod. No. 14712 14713 14714 14715
Size In Inch. 9 12 15 18
SUI Block (Surface Gauge)

Adjustable Base

Prod. No. 14721 14722 14723 14724
Size In Inch. 9 12 15 18

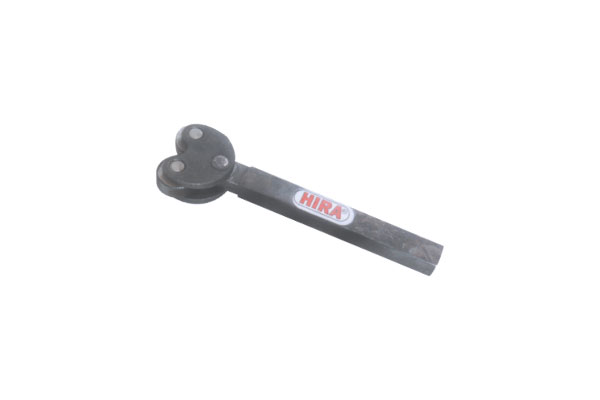

Knurlining Tool Holder
Prod. No. 13911 13912 13913 13914
Size In No. 1019-1 Pc 1017-2 Pcs. 1016-3 Pcs. 1015-6 Pcs.

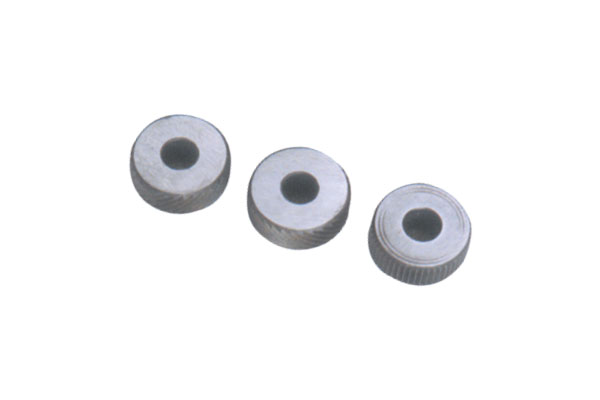

Spare Knurls Left - Right - Straight

For Knurlining Tool Holder

Prod. No. 13921
Size In No. 12 to 40

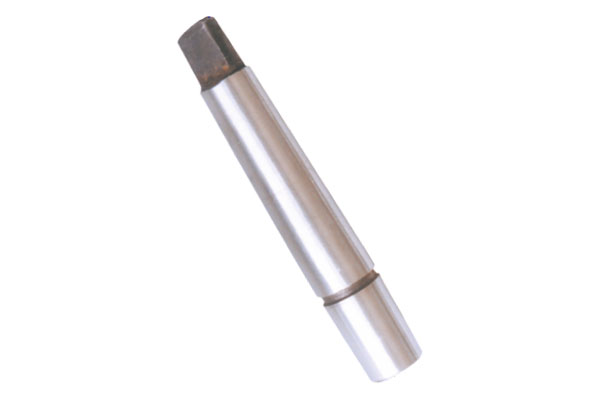

Arbor For Taper Drill Chuck

For Knurlining Tool Holder

Prod. No. 14511 14512 14513 14514 14515 14516 14517 14518 14519 14520 14521 14522
M.T. No. 1 1 2 2 2 2 2 3 3 3 4 4
Size In Inch. 1/4 3/8 1/4 3/8 1/2 5/8 3/4 1/2 5/8 3/4 3/4 1

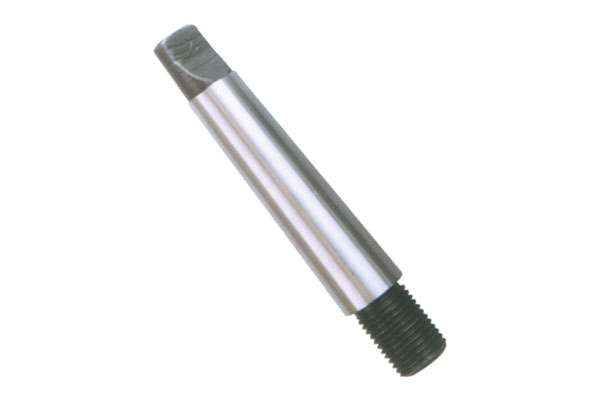

Arbor For Threaded Drill Chuck

(Workshop-Grade)

Prod. No. 14531 14532 14533 14534 14535 14536 14537 14538 14539 14530 14531 14532
M.T. No. 1 1 2 2 2 2 2 3 3 3 4 4
Size In Inch. 1/4 3/8 1/4 3/8 1/2 5/8 3/4 1/2 5/8 3/4 3/4 1

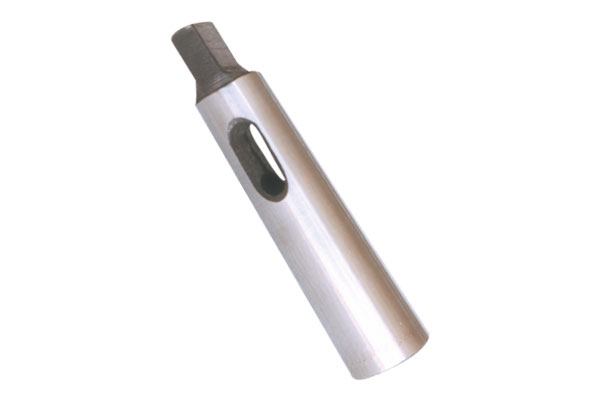

Drill Sleeve

(Workshop-Grade)

Prod. No. 14311 14312 14313 14314 14315 14316 14317 14318 14319 14320 14321 14322 14323 14324 14325
Size In Inch. 0-1 1-2 2-3 3-4 4-5 5-6 1-3 1-4 2-4 1-5 2-5 3-5 6-2 6-3 6-4

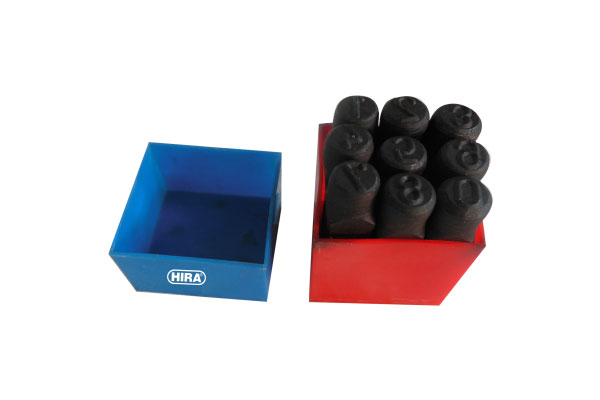

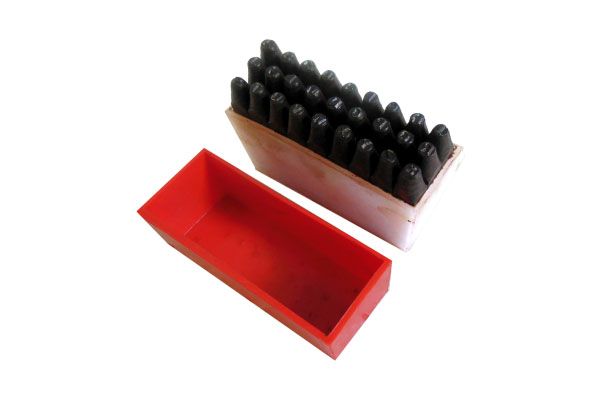

Figure Set
Prod. No. 18511 18512 18513 18514 18515 18516 18517 18518 18519 18520
Size In Inch. 1/32 1/16 3/32 1/8 5/32 3/16 1/4 5/16 3/8 1/2
Letter Set
Prod. No. 18531 18532 18533 18534 18535 18536 18537 18538 18539 18540
Size In Inch. 1/32 1/16 3/32 1/8 5/32 3/16 1/4 5/16 3/8 1/2

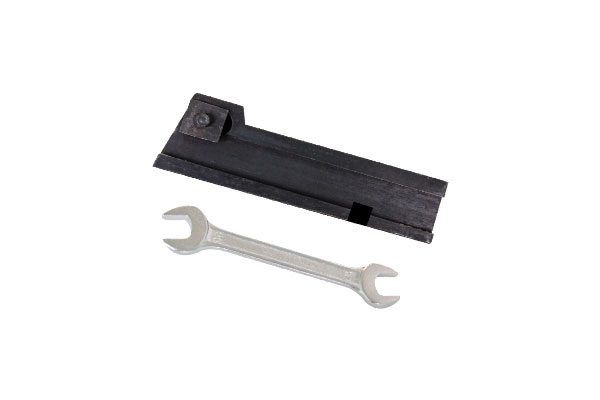

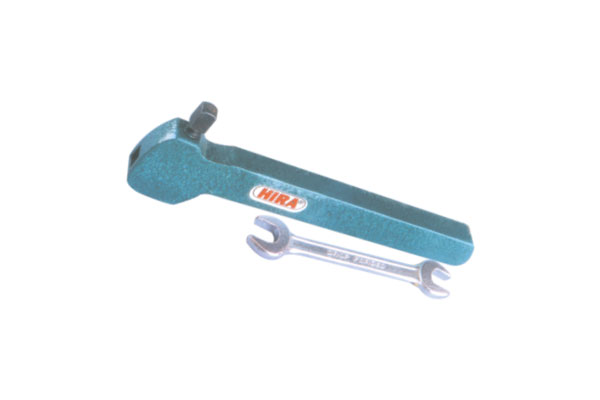

Tool Holder Heavy With Spanner
Prod. No. 13941 13942 13943 13944
Size In Inch. 1/4 5/16 3/8 1/2

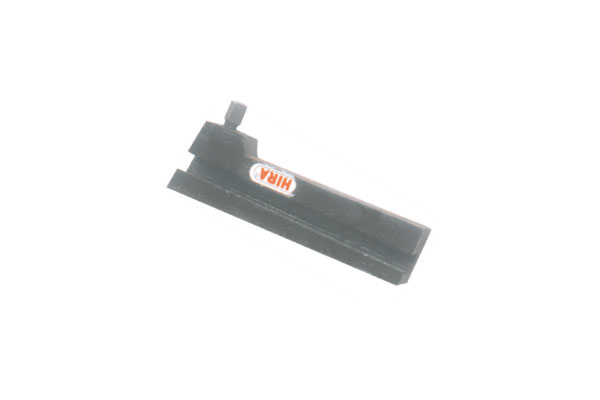

Tool Holder German Type
Prod. No. 13931 13932 13933 13934
Size In Inch. 1/4 5/16 3/8 1/2
Parting Tool Holder
Prod. No. 13961 13962 13963 13964
Size In Inch. 1/2 5/8 3/4 1

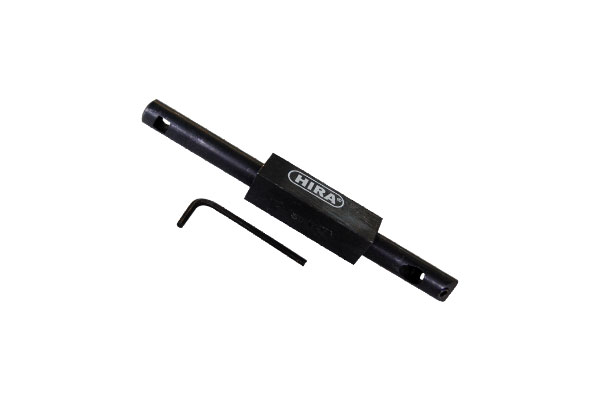

Boaring Bar
Prod. No. 13971 13972 13973 13974
Size In Inch. 1/4 5/16 3/8 1/2

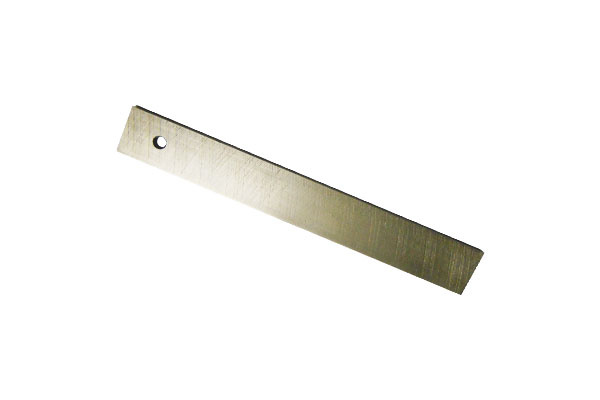

Straight Edges

No. 308 Square Edges

Prod. No. 38171 38172 38173 38174 38175
Size In Inch. 6 10 12 18 24

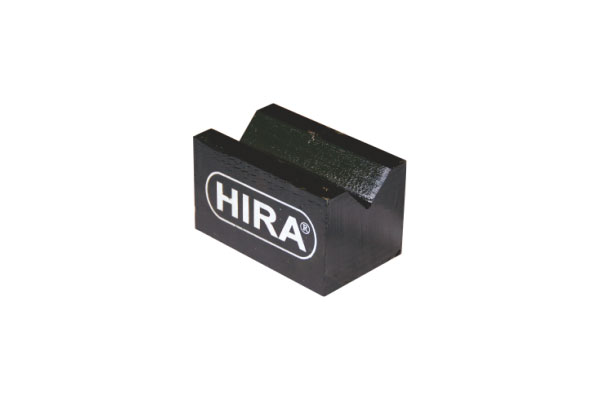

M.S. V-Block Steel
Prod. No. 28151
Size 4'Sq.x 6'Long

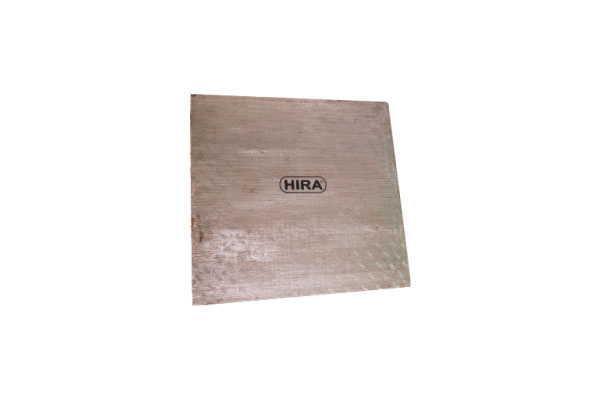

Surface Plate C.I.
Prod. No. 37101 37102 37103 37104
Size 12x12 18x18 24x24 36x36

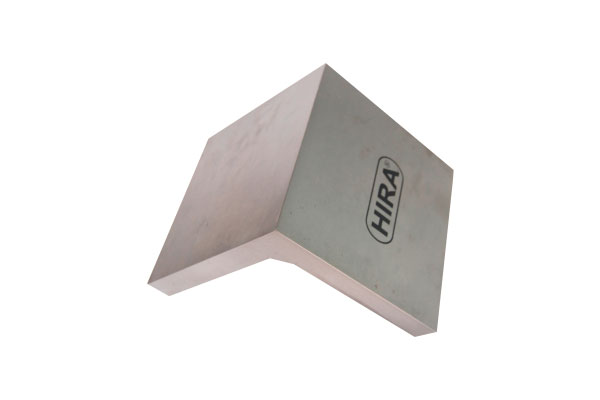

Angle Plate Plain C.I.
Prod. No. 37111 37112 37113 37114 37115 37116 37117 37118 37119 37120 37121
Size In MM. L,W,H 100 x 100 x 100 125 x 100 x 100 125 x 125 x 125 150 x 125 x 125 150 x 150x 150 200 x 150 x 150 200 x 200 x 200 250 x 200 x 200 250 x 250 x 250 300 x 250 x 250 300 x300x 300

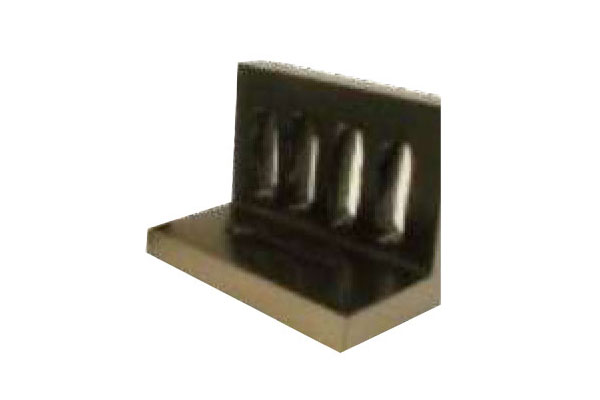

Slotted Angle Plate C.I.
Prod. No. 37131 37132 37133 37134 37135 37136 37137
Size In MM. 112 x 88 x 75 150 x 125 x 112 175 x 138 x 112 200 x 150 x 125 225 x 175 x 150 250x 200 x 150 300 x 225 x 200

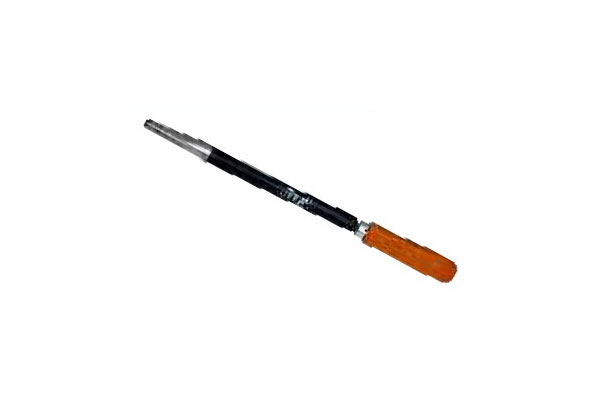

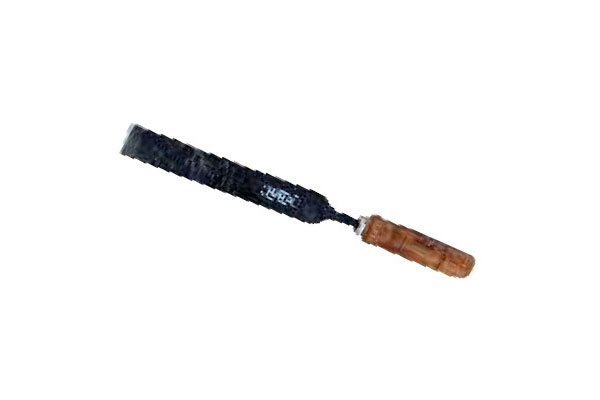

Bearing Scraper Flat
Prod. No. 39633
Size In Inch. 10
Bearing Scraper Half Round
Prod. No. 39643
Size In Inch. 10
Circular Saw With Taper Bearing

(Provision For Drill Chuck)

Prod. No. 19171

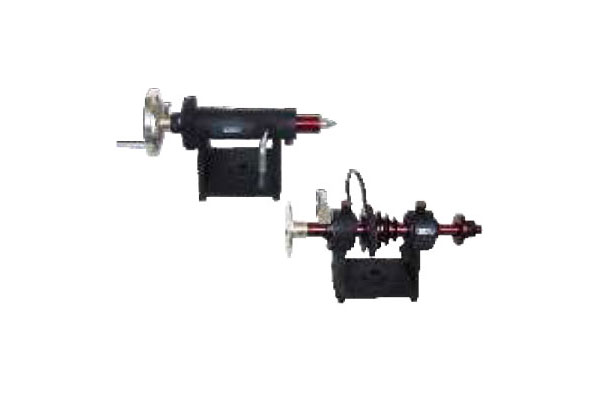

Wood Working Lathe Complete Set With Taper Bearing
Prod. No. 19121 19122
Type With Patta Pulley Only
Type Combined Patta Pulley + V Belt

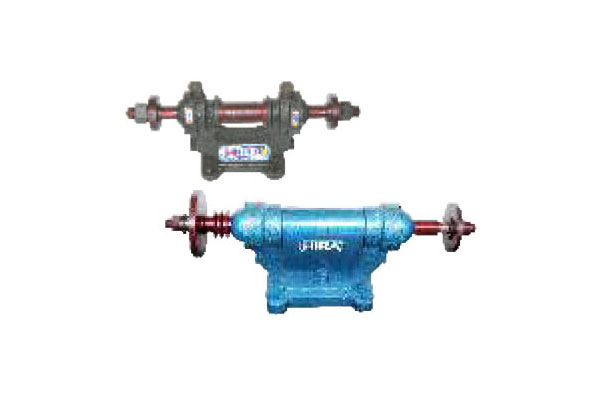

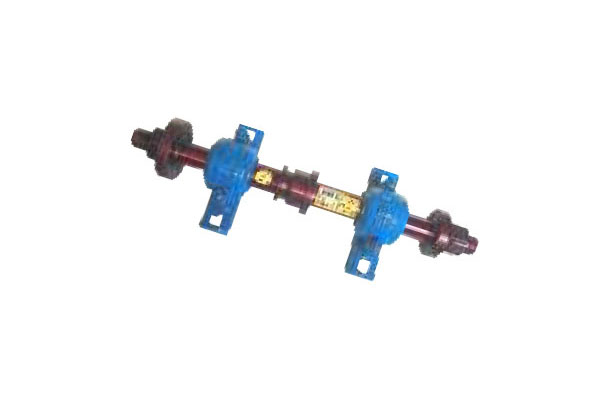

Double Grinder Adda Bracket Wala

With Ball Bearing

Prod. No. 19151 19152
Size 18 23

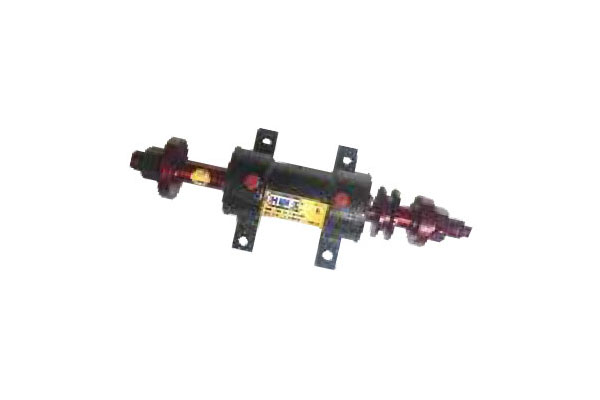

Grinder Adda

With Taper Bearing

Prod. No. Size In No.
19111 1
19112 2
19113 3
19114 4
19115 5

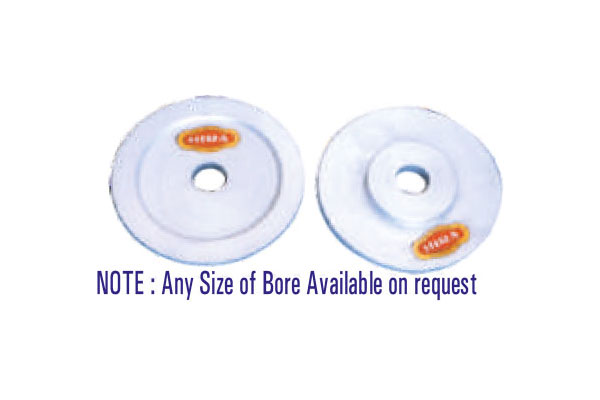

Plates Of Grinder Adda

Note : Any Size Of Bore Available on Request

Prod. No. Size In No.
19141 1"x 2-1/2"
19142 1"x3"
19143 1"x4"
19114 1"x5"
19145 1"x6"

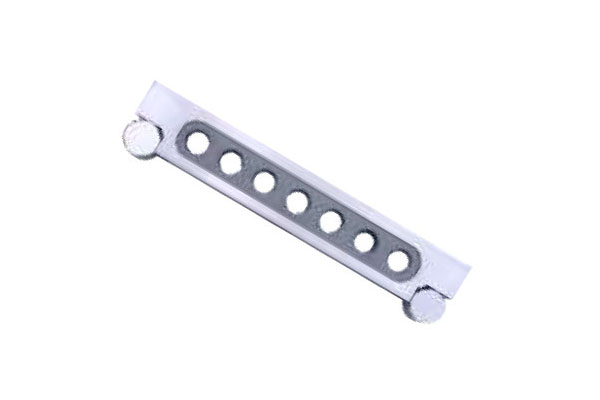

Sine Bar
Prod. No. 37061 37062 37063 37064 37065 37066
Size In MM. 100 125 150 200 250 300

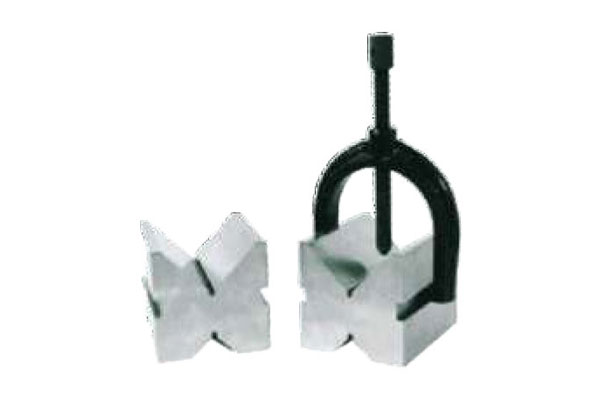

C.I. Vee Block

With Clamp

Prod. No. 38981 38982 38983 38984 38985 38986 38987 38988 38989 38990 38991 38992 38993 38994 38995 38996 38997 38998 38999 39000 39001 39002 39003 39004 39005 39006 39007 39008 39009 39010 39011
Size In Inch. 50x38x38 75x38x38 50x38x25 63x47x28 75x56x31 75x50x50 75x63x38 75x63x63 100x75x38 100x63x63 100x75x75 100x88x63 100x88x88 125x75x75 125x88x88 125x100x100 125x125x125 150x100x50 150x100x100 150x125x125 150x150x150 175x125x56 200x150x63 200x150x75 200x150x100 200x150x150 225x169x75 250x175x88 250x175x100 300x200x88 300x200x100
