Section 3 - Thread Cutting Dies

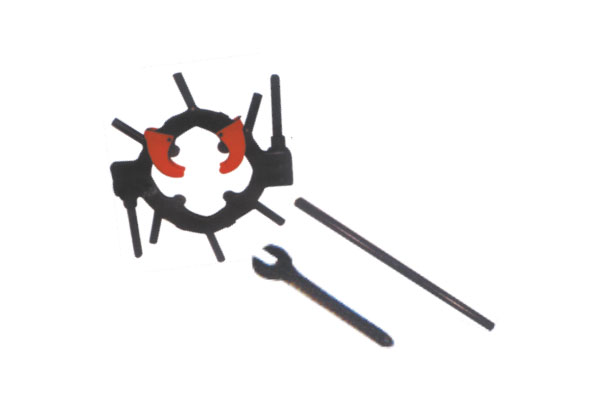

Pipe Die Set Complete With Grey Iron Stock

(BSP Or Conduit Threads) Xtra Heavy

Prod. No. 112 1121 1122 1123 1124 1127
Size In Inch. 1/2,3/4,1 1-1/4,1-1/2,2 1-1/4 2-1/2,3 2-1/2 4
Size In MM. 15,20,25 32,40,50 32 65,80 65 100
Pipe Die Bit (Gutka) B.S.P. Or B.S.C.
Prod. No. 11513 11514 11515 11517 11518 11519 11521 11522 11525
Size In Inch. 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4

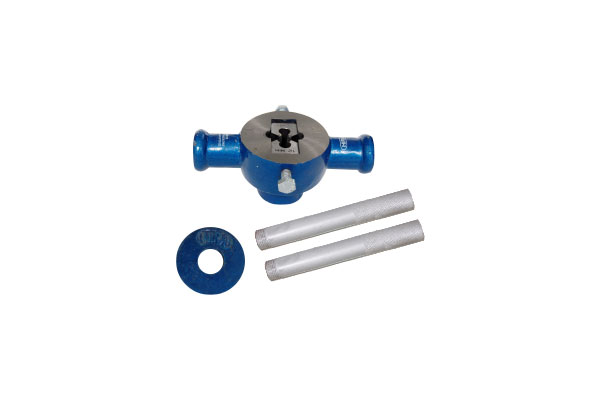

Rod Die Set Complete 12 MM

With 2 Pcs. Die Gutka

Prod. No. 12221
Size In MM. 12

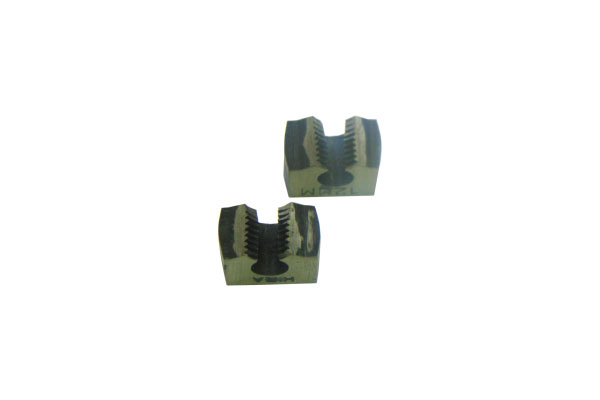

Rod Die (Gutka)
Prod. No. 11824
Size In MM. 12

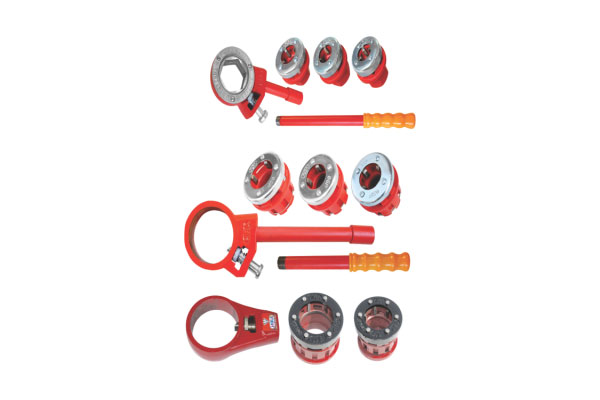

Ratchet Pipe Threader

BSP Complete Threading In One Cut

Prod. No. Size In Inch. Size In MM.
114 1/2 to 1 15 to 25
1141 1-1/4 to 2 32 to 50
1142 2-1/2 & 3 65 & 80
1143 4 100
1144 5 125
1145 6 150
1147 1/2 to 2 15 to 150
1148 1/2 to 6 (10 PCS.) 15 to 150

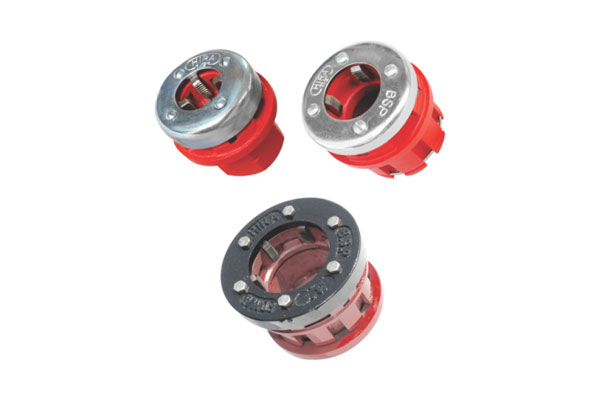

Spare Die Head Chaser Fitted

(BSP Threads)

Prod. No. 11411 11412 11413 11415 11416 11417 11418 11419 11420 11422
Size In Inch. 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 6
Size In MM. 15 20 25 32 40 50 65 80 100 150

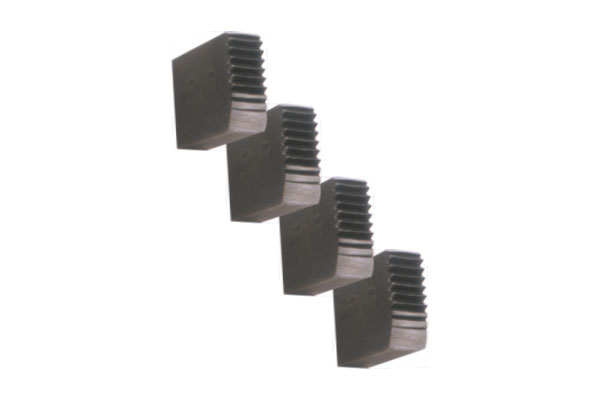

Spare Chaser For Die Head
Prod. No. 11431 11432 11433 11435 11436 11437 11438 11439 11440 11442
Size In Inch. 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4 6
Size In MM. 15 20 25 32 40 50 65 80 100 150

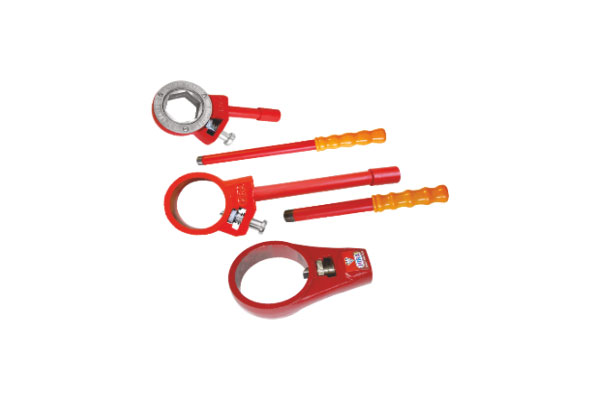

Spare Ratchet Handle
Prod. No. Size In Inch. Size In MM.
11451 1/2 to 1 15 to 25
11452 1-1/4 to 2 32 to 50
11453 2-1/2 & 3 65 & 80
11454 4 Only 100
11455 5-6 125-150

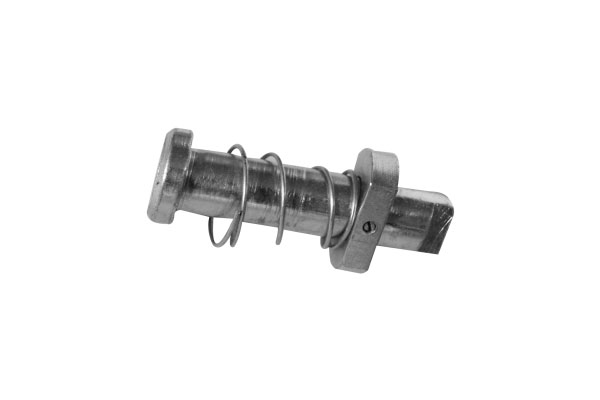

Spare Lock Complete Set For Ratchet Handle
Prod. No. Size In Inch. Size In MM.
11461 1/2 to 1 15 to 25
11462 1-1/4 to 2 32 to 50
11463 2-1/2 to 3 65 to 80

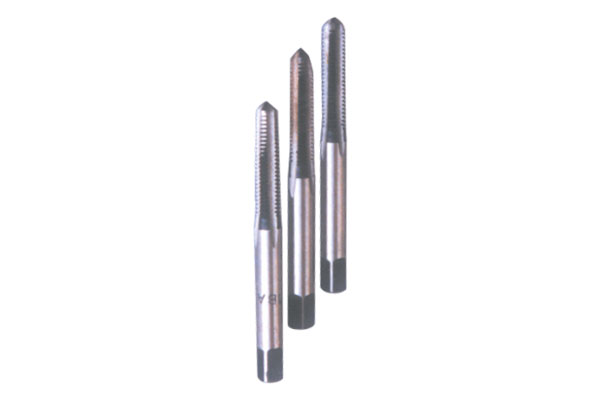

Hand Taps (B.S.W., B.S.F., NF. & N.C.)

Set of 3 PCS.

Prod. No. 12511 12512 12513 12514 12515 12516 12517 12518 12519 12520 12521 12522 12523 12524 12525 12526 12527 12528 12529 12530 12531 12532 12533 12534 12535 12536 12537 12538
Size In Inch. 1/16 3/32 1/8 5/32 3/16 7/32 1/4 9/32 5/16 3/8 7/16 1/2 9/16 5/8 11/16 3/4 13/16 7/8 15/16 1 1-1/8 1-1/4 1-3/8 1-1/2 1-5/8 1-3/4 1-7/8 2
Hand Taps B.A. (British Association)
Prod. No. 12590 12591 12592 12593 12594 12595 12596 12597 12598 12599 12600
Size In B.A. 0 1 2 3 4 5 6 7 8 9 10

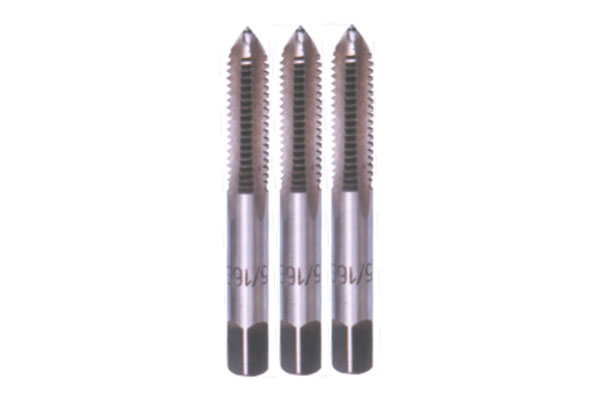

Hand Taps Metric Set

Set Of 3 PCS.

Prod. No. 12541 12542 12543 12544 12545 12546 12547 12548 12549 12550 12551 12552 12553 12554 12555 12556 12557 12558 12559 12560 12561 12562 12563 12564 12565 12566 12567 12568
Size In MM. 2 3 4 5 6 7 8 9 10 11 12 14 16 18 20 22 24 25 27 30 33 36 39 40 42 45 48 50

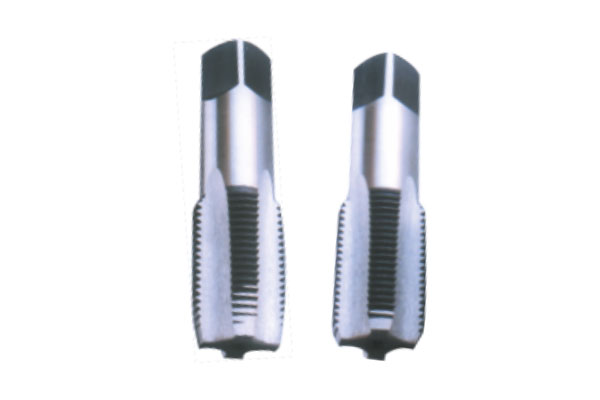

Hand Taps B.S.P. (Parallel)

Set Of 2 PCS.

Prod. No. 12571 12572 12573 12574 12575 12576 12577 12578 12579 12580 12581 12582
Size In INCH. 1/8 1/4 3/8 1/2 5/8 3/4 7/8 1 1-1/4 1-1/2 1-3/4 2

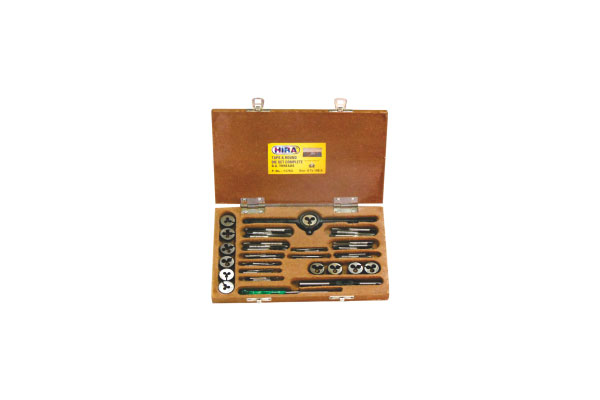

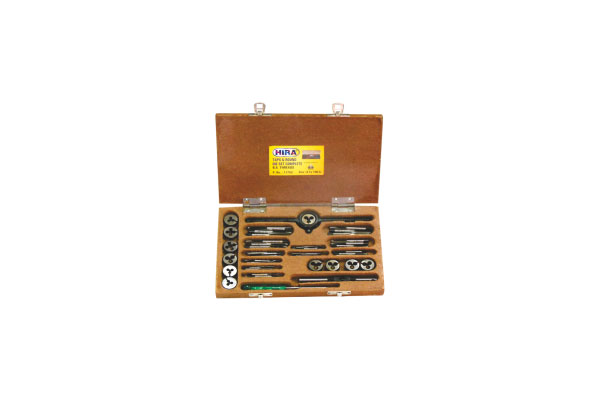

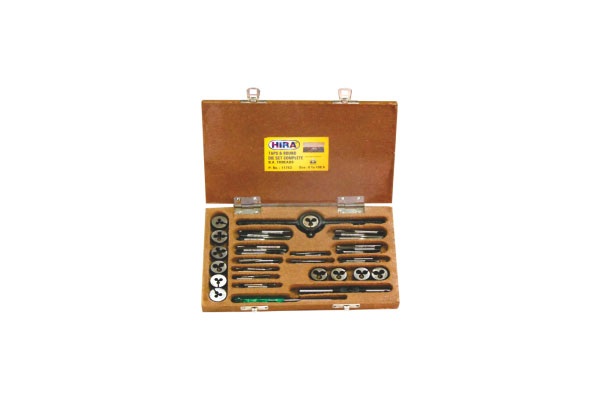

Taps & Round Die Set Complete In Wooden Box

B.S.W. Threads

Prod. No. Size In Inch.
11731 1/16, 3/32, 1/8, 5/32, 3/16, 7/32, 1/4
11732 1-1/4 to 2
11733 1/8, 5/32, 3/16, 7/32, 1/4
11734 1/4, 5/16, 3/8, 7/16, 1/2
11735 1/4, 5/16, 3/6, 7/16, 1/2, 5/8, 3/4, 7/8, 1

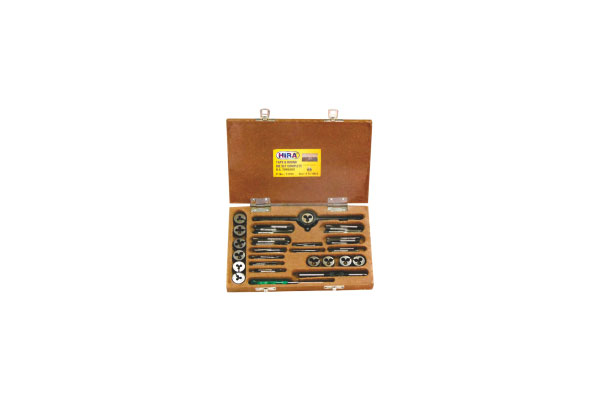

Taps & Round Die Set Complete In Wooden Box

B.S.W. Threads

Prod. No. Size In Inch.
11711 1/4, 5/16, 3/8, 7/16, 1/2
11712 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4
11713 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1
Taps & Round Die Set Complete In Wooden Box

U.N.F. Threads

Prod. No. Size In Inch.
11721 1/4, 5/16, 3/8, 7/16, 1/2
11722 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4
11723 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1
Taps & Round Die Set Complete In Wooden Box

MM Threads

Prod. No. Size In Inch.
11741 1/4, 5/16, 3/8, 7/16, 1/2
11742 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4
11743 1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1
11744 6, 7, 8, 10, 12 (S.I.)
11745 6, 8, 10, 12, 14, 16, 18, 20, 22, 24 (S.I.)
11746 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, (S.I.)

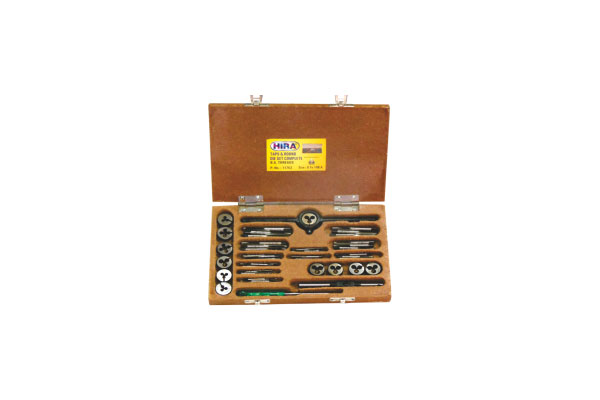

Taps & Round Die Set Complete In Wooden Box

British Association

Prod. No. Size In Inch.
11751 0, 1, 2, 3, 4, 5, 6
11752 0, 1, 2, 3, 4, 5, 6, 7, 8
11753 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10

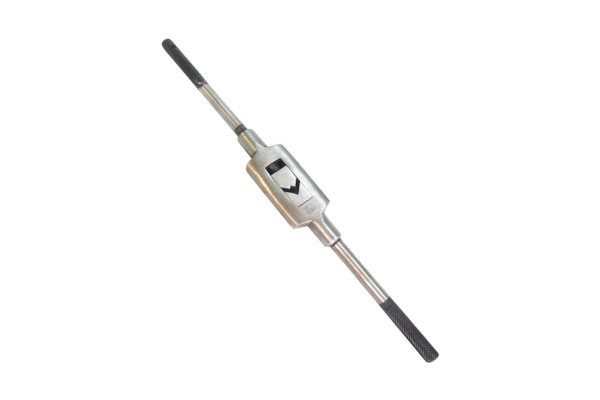

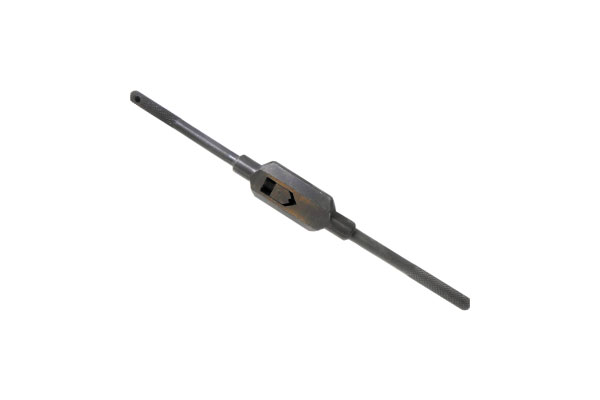

Adjustable Tap Handle (Tap Wrench) M.I. Steel
Prod. No. 12411 12412 12413 12414 12415 12416 12417 12418 12419 12420
Size In Inch. 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2 2- 1/2 3
Size In MM. 6 10 15 20 25 32 40 50 65 80
Adjustable Tap Handle

Drop Forged Steel

Prod. No. 12461 12462 12463 12464 12465
Size In Inch. 1/4 3/8 1/2 3/4 1
Size In MM. 6 10 15 20 25

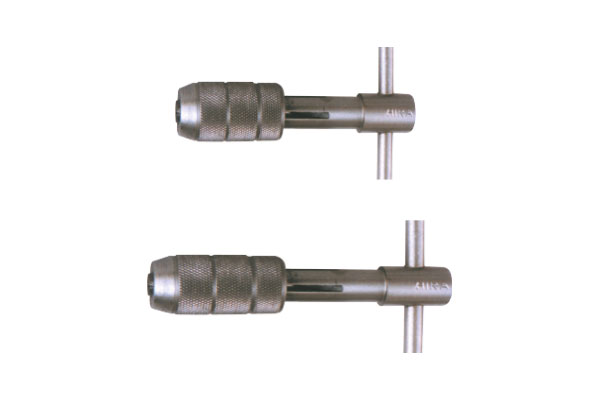

T-Handle Tap Wrench
Small
Prod. No. 12431 12432 12433 12434
Size In Inch. A 1/6-3/16 B 1/ 8-1/4 C 3/16-5/16 D 1/4-1/2
Long
Prod. No. 12441 12442 12443 12444
Size In Inch. A 1/6-3/16 B 1/ 8-1/4 C 3/16-5/16 D 1/4-1/2

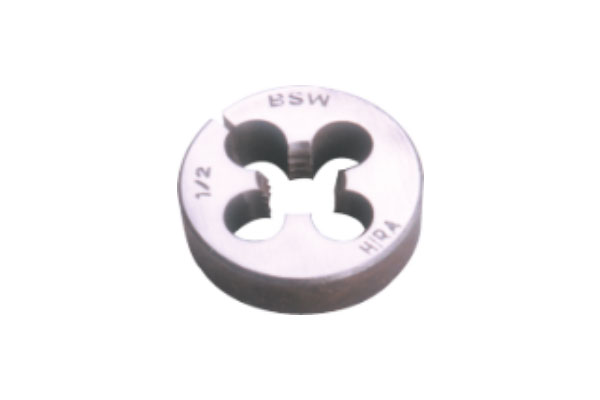

Round Dies (B.S.W., U.N.E., B.S.P., M.M & B.A.) Threads

Drop Forged Steel

Prod. No. 12321 12322 12323 12324 12325 12326 12327 12328 12329 12330 12331 12332
Size In MM. 1/16BSW, 9BA, 10BA, 2.4, 2.45 3/32BSW, 6BA, 7BA, 8BA, 3, 3.5 1/8, 5/32, 3/16BSW, 4 to 6 1/4, 5/16, 3/8BSW, 1/8BSP, 6 to 10 1/4 to 3/4BSW, 3/8, 1/4BSP, 6 to 20 7/8, 1BSW, 3/8, 1/2 BSP, 20 to 24 1-1/8, 1-1/4BSW, 3/4BSP, 27 to 30 1-1/4BSW, 27 to 30 1-3/8, 1-1/2BSW, 1BSP, 1-1/4BSP Bigger Sizes Bigger Sizes Bigger Sizes
Outer Dia In Inch. 13/16 13/16 13/16 1 1-1/2 2 2-1/4 2-1/2 3 3-1/2 4 5

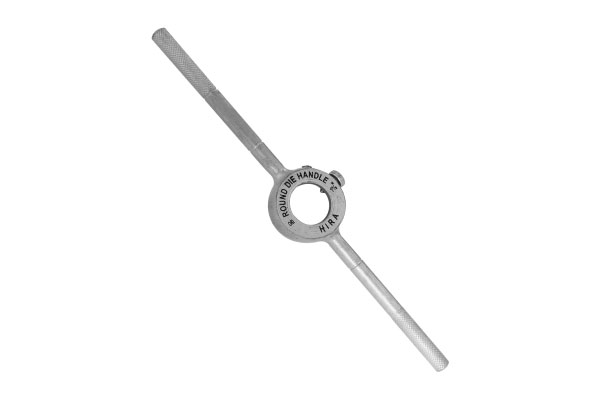

Round Die Handle (Circular Die Stock)

All Steel

Prod. No. 12311 12312 12313 12314 12315 12316 12317
Size In Inch. 13/16 1 1-1/2 2 2-1/4 2-1/2 3
Pipe Cutter Three Wheel Type
Prod. No. 12611 12612 12613 12614
Size In Inch. 1 (1/2 to 1) 2 (1/2 to 2) 3 (1-1/2 to 3) 4 (2-1/2 to 4)

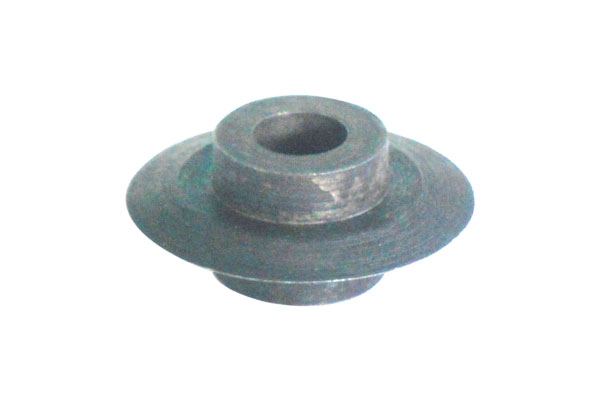

Spare Wheel For Pipe Cutter Three Wheel Type
Prod. No. 12621 12622 12623 12624
Size In Inch. 1 2 3 4

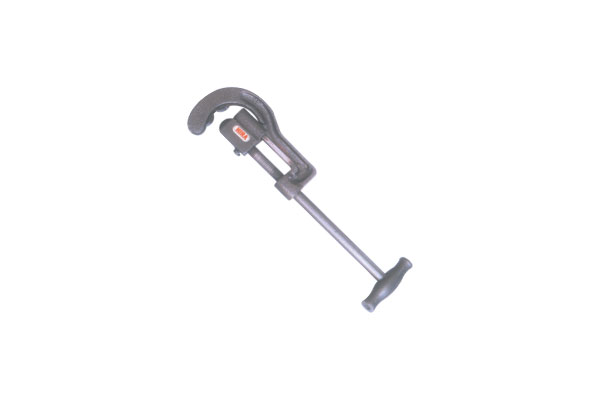

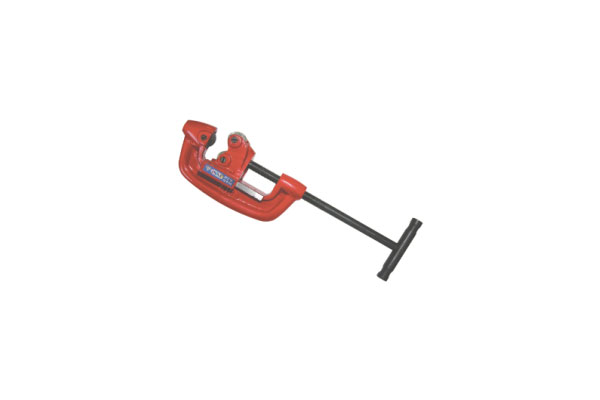

Pipe Cutter With Two Roller & One Cutting Wheel

Special Quality (Rigid Type)

Prod. No. 12631 12632 12633 12634 12635
Size In Inch. 1 (3/8to 1) 2 (1/2to 2) 3 (1/2 to 3) 4 (1 to 4) 6 (2 to 6)

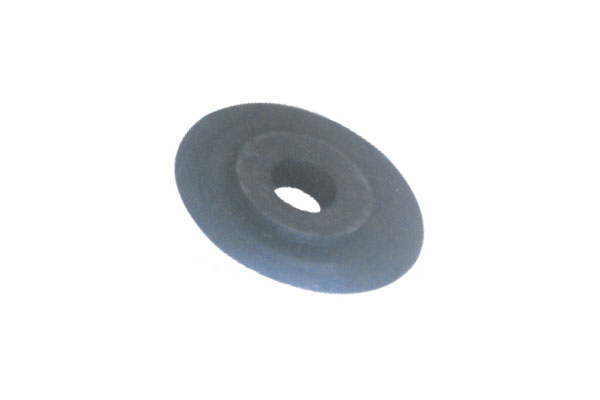

Spare Wheel For Pipe Cutter Rigid Type Carbon Steel
Prod. No. 12641 12642 12643 12644 12645
Size In Inch. 1 2 3 4 6

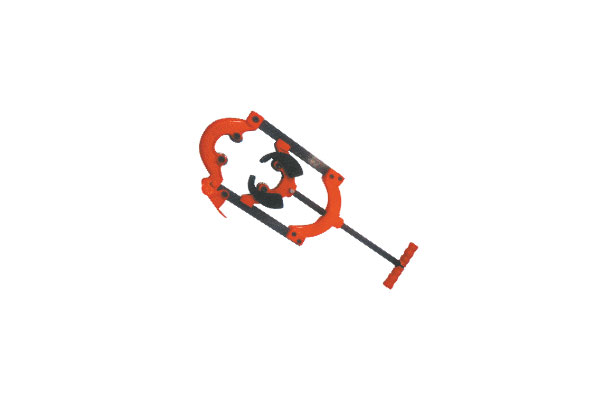

Hinged Pipe Cutter
Prod. No. 33111 33112 33113
Size In Inch. 3 to 6 6 to 9 9 to 12
Rotary Pipe Cutter
Prod. No. 33211 33212 33213 33214 33215 33216 33217 33218
Size In Inch. 3 to 6 6 to 9 9 to 12 12 to 15 15 to 18 21 to 24 30 36
